Custom FindImage Function

Overview

This is a custom function to find an image on the screen that matches a reference image with the option to click, right click, or double click on an image when found. If the image is found, the function returns a Boolean value of true, which can be used in logic statements.

Usage

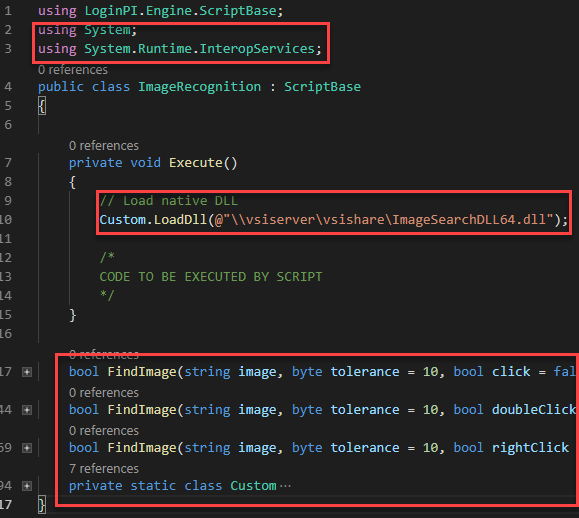

Before the custom FindImage function can be used, you will need to specify the using directive for the namespace System and System.Runtime.InteropServices at the top of the script. You will also need to load the ImageSearchDLL64 library with Custom.LoadDll at the beginning of the Execute method. This will load the dll needed by the FindImage function later on in the script. The rest of the code for the Findimage function can be pasted below Execute()

FindImage

Syntax

CODE

FindImage(string image, byte tolerance = 10, bool click = false, bool resetMousePosition = false, bool log = false, int timeout = 30);

Parameters	Type	Default Value	Description
image	string		reference image to find on screen
tolerance	byte	10	value 0-255, lower = more strict when it comes to differences in the images, higher = less strict but more prone to errors. Setting the value to 10 has proved successful in most cases.
click/doubleClick/rightClick	bool	false	click, double click, or right click on an image if found
resetMousePosition	bool	false	reset the mouse/cursor position after an image is found
log	bool	false	show findimage attempts in the log output
timeout		30	timeout value in seconds to perform findimage

Code Example

CODE

// find an image, click on it, and reset the mouse position.
FindImage(image:@"\\vsishare\image.png", click:true, resetMousePosition:true, timeout:60);

// FindImage wrapped around a timer
StartTimer("find_image");
var image = FindImage(image:@"\\vsishare\image.png", click:false);
// if image is found or true, stop the timer, else cancel the timer
if(image)
{
StopTimer("find_image");
}
else
{
CancelTimer("find_image");
}

Demonstration Video

https://youtu.be/mm542s9Xs34?feature=shared

In this video example we have a workload that opens calculator, finds the numbers 1 to 6 button using findimage and clicks on them. There is a timer wrapped around each findimage function so we can measure how long it takes to find an image. As you can see, the findimage is very fast, taking only 40-60 milliseconds on average to find the reference images. This, of course, can vary depending on the size of the reference image and the screen resolution of the target environment.

Disclaimer

This workload is provided as-is and might need further configuration and customization to work successfully in each unique environment. For further Professional Services-based customization please consult with the Login VSI Support and Services team. Please refer to the Application Script Recording for further self-help information regarding workload crafting and implementation.
